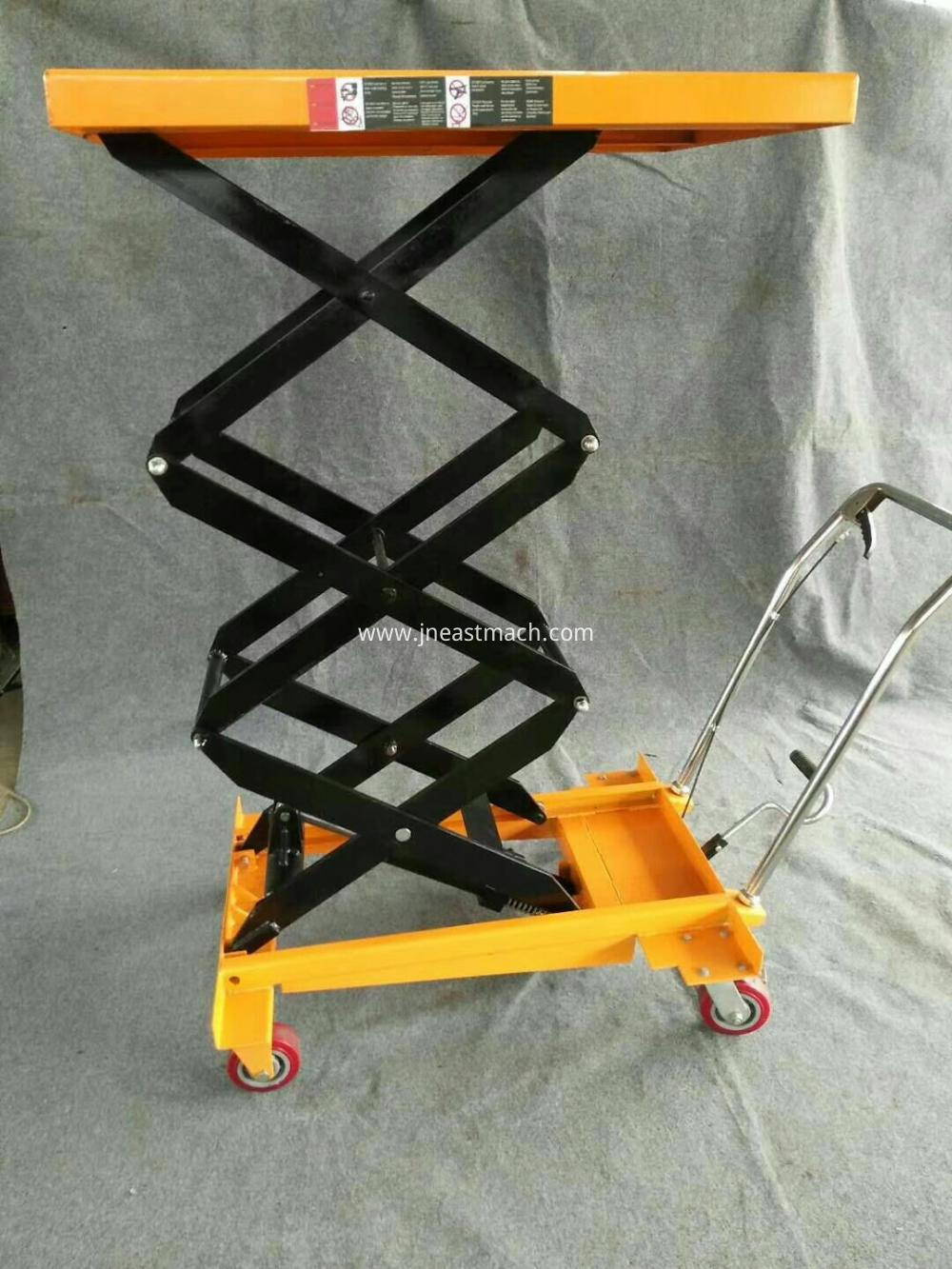

Hydraulic Trolley Lift:
Mini Manual Hand Lift is a lifting platform for transporting small items, and similar to the function of the forklift truck. Electric Manual Lifts has the advantages of small size, flexibility, strong maneuverability, and easy operation.
Only has the most basic handling function, pure manual control, the volume is small, the weight is light, the lifting platform does not have the lift function. More for simple goods handling.
By means of manual operation, the transportation of small amount of goods in small place is realized by hydraulic or electric driven way.
Hydraulic Trolley Lift Specifications Table:
Model | Lift Capacity (kg) | Max. Height (mm) | Min. Height (mm) | Platform Size (mm) | Weight (kg) | Wheel Dia. (mm) |
GTT-15 | 150 | 720 | 220 | 700*450*36 | 46 | Φ100*25 |
GTT-30 | 300 | 900 | 210 | 855*500*50 | 80 | Φ125*40 |
GTT-35 | 350 | 1300 | 355 | 910*500*53 | 105 | Φ125*40 |
GTT-50 | 500 | 900 | 285 | 815*500*53 | 115 | Φ125*40 |
GTT-70 | 700 | 1500 | 445 | 1220*610*53 | 195 | Φ125*40 |
GTT-75 | 750 | 990 | 420 | 1000*510*55 | 125 | Φ147*50 |
GTT-100 | 1000 | 990 | 380 | 1016*510*55 | 140 | Φ147*50 |
Application Area:
The Hydraulic Trolley Lift is mainly used in warehouses, workshop and other places where people need to lift medium weight goods. Hydraulic Single Scissor Lift Hand Pallet Truck is the ideal choice for super markets, malls and logistics warehousing companies.
If you have any questions, please contact with us directly. Hydraulic Trolley Lift are produced with High Quality and Good Appearance. Welcome you can visit our Factory. For inqury, Please send mail directly to us.
