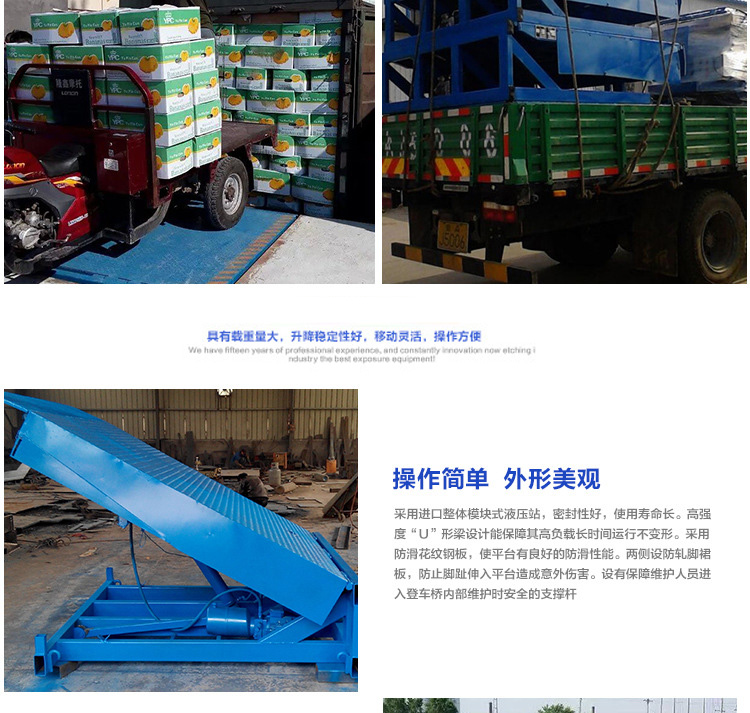

4t Logistics Post Express Hydraulic Drive Ramp Leveller
Fixed Dock Ramp have Full hydraulic drive, easy to operate and reliable.
4t Logistics Ramp Leveller lip and the platform with the entire length of the shaft connection, high strength, good reliability.
The use of imported seals to ensure that the hydraulic system has excellent sealing performance.
Import the whole modular hydraulic station, good sealing, long service life.
High strength "U" beam design to protect its high load for a long time without deformation.
Post Hydraulic Drive Leveller using non-slip pattern steel plate, so that the platform has a good anti-skid performance.
Both sides of the anti-running skirt skirt, to prevent the toes into the platform caused by accidental injury.
Express Ramp Leveller Lift has a support bar that safeguards the maintenance personnel to enter the safety of the boarding bridge.
Main Feature for 4t Logistics Post Express Hydraulic Drive Ramp Leveller
1. Lifting Height: 300-500mm
2. Loading: 4t
3. Power: 0.75kw
4. Table Size: 2*2m
5. Overall Size: 2*2*0.55m
6. Weight: 700kg
Main Model of Logistics Post Express Hydraulic Drive Ramp Leveller
Model | Lifting Height | Loading | Power | Table Size | Overall Size | Weight |
GDQ-3 | 300-500mm | 3t | 0.75kw | 2*2m | 2*2*0.55m | 650kg |
GDQ-4 | 300-500mm | 4t | 0.75kw | 2*2m | 2*2*0.55m | 700kg |
GDQ-6 | 300-500mm | 6t | 0.75kw | 2.5*2m | 2.5*2*0.55m | 750kg |
GDQ-8 | 300-500mm | 8t | 0.75kw | 2.5*2m | 2.5*2*0.55m | 850kg |
GDQ-10 | 300-500mm | 10t | 0.75kw | 2.5*2m | 2.5*2*0.55m | 1000kg |
GDQ-12 | 300-500mm | 12t | 0.75kw | 2.5*2m | 2.5*2*0.55m | 1150kg |
