Aluminum Lift:
Aluminum lift is made up of high grade aluminum profile and equipped with the universal wheels.

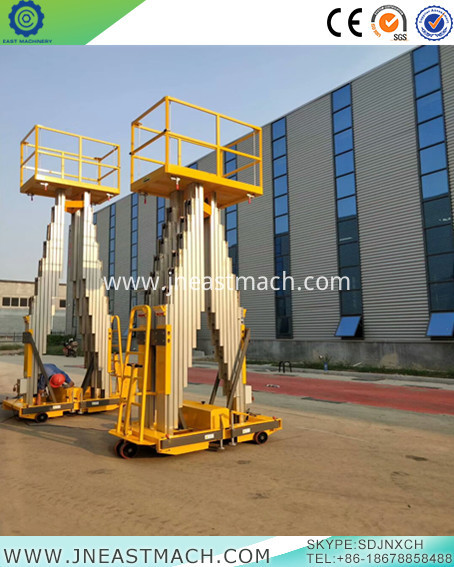

Electric Hydraulic Aluminum Double Masts Vertical Lift is easily pushed around to the designated sites.
Hydraulic Vertical Man Lift Table has beautiful structure, compact main body, light weighted, safe and reliable.
Control panel of Aluminum Mast Lift Platform is on both ground and platform to conform the lift up and down easily.

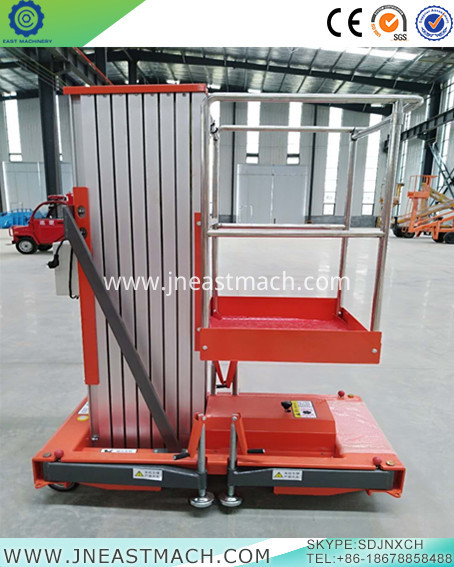

Single Masts Aluminum Vertical Lift One Person adopt high-strength quality aluminum alloy material.
10m Single Masts Lift Table has beautiful appearance, small size, light weight and flexible operation.
Aluminum Vertical Lift Platform is easy to implement. Movements smooth, safe and reliable.
Aluminum Alloy Telescopic Man Lift looks light, can play a maximum lifting capacity in a very small space.
Aluminum Lift Specification Table:
Model (Single Mast) | Lift height (m) | Lift Capacity (kg) | Platform Size (m) | Voltage (v) | Power (kw) | Weight (kg) | Overall Size (m) |
SJL4-100-1 | 4 | 100 | 0.6*0.6 | 220 | 1.1 | 280 | 1.3*0.8*1.98 |
SJL6-150-1 | 6 | 150 | 0.65*0.65 | 220 | 1.1 | 360 | 1.42*0.78*1.97 |
SJL8-130-1 | 8 | 130 | 0.65*0.65 | 220 | 1.1 | 380 | 1.42*0.78*1.97 |
SJL10-130-1 | 10 | 130 | 0.65*0.65 | 220 | 1.1 | 420 | 1.42*0.78*1.97 |
Model (Double Masts) | Lift height (m) | Lift Capacity (kg) | Platform Size (m) | Voltage (v) | Power (kw) | Weight (kg) | Overall Size (m) |
SJL6-300-2 | 6 | 300 | 1.2*0.63 | 220 | 1.5 | 510 | 1.553*0.85*2.0 |
SJL8-300-2 | 8 | 300 | 1.2*0.63 | 220 | 1.5 | 550 | 1.553*0.85*2.0 |
SJL10-250-2 | 10 | 250 | 1.5*0.63 | 220 | 1.5 | 690 | 1.848*0.85*2.0 |
SJL12-200-2 | 12 | 200 | 1.5*0.63 | 220 | 1.5 | 730 | 1.958*1.05*2.39 |
SJL14-150-2 | 14 | 150 | 1.5*0.63 | 220 | 1.5 | 790 | 1.9*1*2.3 |
Model (Three Masts) | Lift height (m) | Lift Capacity (kg) | Platform Size (m) | Voltage (v) | Power (kw) | Weight (kg) | Overall Size (m) |
SJL12-250-3 | 12 | 200 | 1.57*0.9 | 220/380 | 2.2 | 1050 | 1.9*1.1*1.98 |
SJL14-200-3 | 14 | 200 | 1.57*0.9 | 220/380 | 2.2 | 1120 | 1.9*1.2*2.3 |
SJL16-200-3 | 16 | 200 | 1.57*0.9 | 220/380 | 2.2 | 1200 | 2.0*1.2*2.7 |
Model (Four Masts) | Lift height (m) | Lift Capacity (kg) | Platform Size (m) | Voltage (v) | Power (kw) | Weight (kg) | Overall Size (m) |
SJL12-200-4 | 12 | 200 | 1.57*0.9 | 220/380 | 2.2 | 1050 | 1.9*1.2*2.0 |
SJL14-200-4 | 14 | 200 | 1.57*0.9 | 220/380 | 2.2 | 1150 | 1.9*1.2*2.3 |
SJL16-200-4 | 16 | 200 | 1.57*0.9 | 220/380 | 2.2 | 1250 | 1.9*1.2*2.7 |
SJL18-200-4 | 18 | 200 | 1.57*0.9 | 220/380 | 2.2 | 1480 | 2.0*1.4*2.96 |
Application Area:
Widely used in factories, hotels, restaurants, railway stations, theaters, galleries and other places.
For the maintenance of equipment, paint decoration, cleaning, replacement of electrical appliances.
If you have any questions, please contact with us directly. Aluminum Lift are produced with High Quality and Good Appearance. Welcome you can visit our Factory. For inqury, Please send mail directly to us.
