Folding Boom Lift:

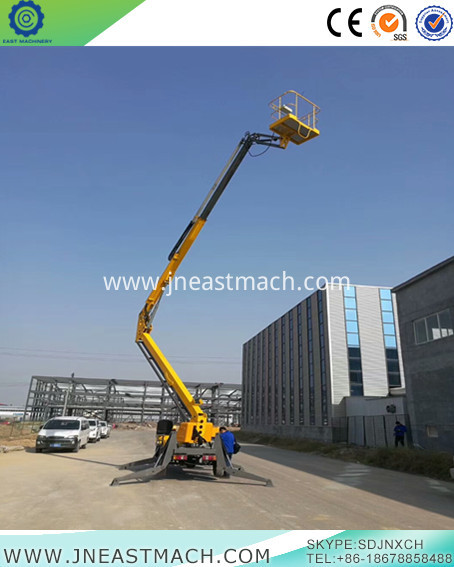

Self-Drive Hydraulic Telescopic Articulating Boom Lift can overhang operation.
Self-Drive Hydraulic Boom Lift can overcome some obstacles or in a point lifting for more point work.
Telescopic Boom Elevator Table can rotate 360 degrees, load capacity big, available to two people for working at the same time and carry some tools; mobile flexible, transfer work place convenient, appearance beautiful.

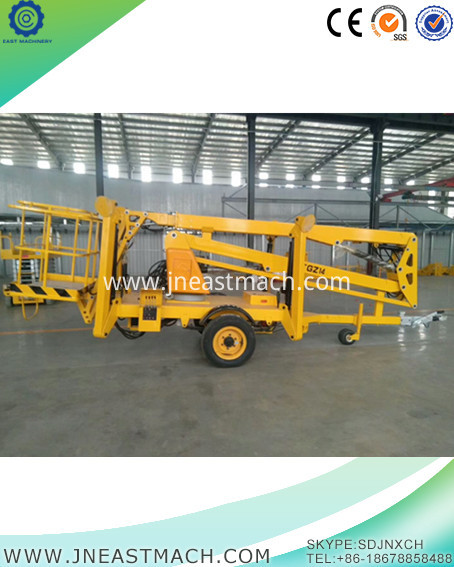

Self-propelled Articulating Trailer Boom Lift has automated drive and hydraulic automatic leg.
Mobile Trailer Boom Lifts can be rotated 360 degrees. The bottom of platform is made of checkered steel plate.
Folding Boom Lift Specification Table:
Model | Platform Size (mm) | Overall Size (mm) | Lift Height (m) | Lift Capacity (kg) | Working Radius (m) | Weight (kg) |
TGZ-8 | 1200*800 | 5200*1585*1900 | 8 | 200 | 4.5 | 1500 |
TGZ-10 | 1200*800 | 5400*1665*1900 | 10 | 200 | 5 | 1700 |
TGZ-12 | 1200*800 | 6400*1665*1900 | 12 | 200 | 6 | 2000 |
TGZ-14 | 1200*800 | 6200*1730*2100 | 14 | 200 | 8.5 | 2350 |
TGZ-16 | 1200*800 | 7000*1730*2200 | 16 | 200 | 9 | 2600 |
TGZ-18 | 1200*800 | 7100*1850*2260 | 18 | 200 | 10 | 4300 |
TGZ-20 | 1200*800 | 7100*1850*2260 | 19.8 | 200 | 12 | 4450 |
Model | Moving Speed (km/h) | Overall Size (mm) | Lift Height (m) | Lift Capacity (kg) | Working Radius (m) | Weight (kg) |
QB-8 | 15-30 | 4000*1700*2700 | 8 | 180 | 3 | 1500 |
QB-10 | 15-30 | 4000*1700*2700 | 10.5 | 180 | 3.4 | 1600 |
QB-12 | 15-30 | 4800*2100*3050 | 12 | 180 | 4 | 1800 |
QB-14 | 15-30 | 5100*2200*3300 | 13.5 | 180 | 4.2 | 1900 |
Model | Platform Size (mm) | Overall Size (mm) | Lift Height (m) | Lift Capacity (kg) | Working Radius (m) | Weight (kg) |
TGZ-12 | 1200*800 | 5200*1750*2100 | 12 | 200 | 7.5 | 2750 |
TGZ-14 | 1200*800 | 5800*1800*2100 | 14 | 200 | 8.5 | 3150 |
TGZ-16 | 1200*800 | 6571*1800*2200 | 16 | 200 | 9.5 | 3450 |
Application Area:
Folding Boom Elevator are widely used in highways, boat yards shopping walls, stadiums, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction.
If you have any questions, please contact with us directly. Folding Boom Lift are produced with High Quality and Good Appearance. Welcome you can visit our Factory. For inqury, Please send mail directly to us.
